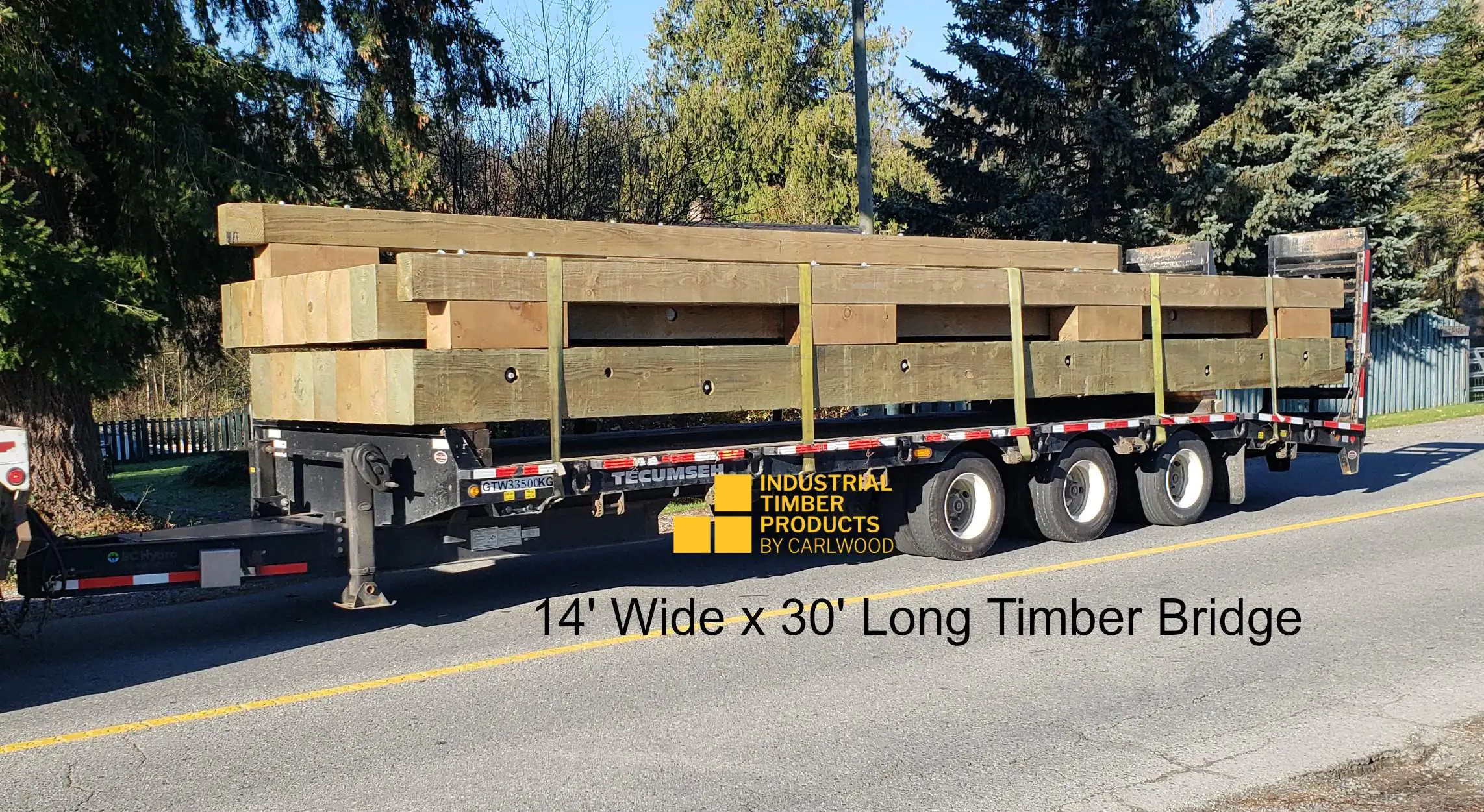

14′ Wide x 30′ Long-Vehicle Bridge

Product Features:

• Bridges are treated to CSA Standard Schedule 80 with CCA Treatment
• Bridges are supplied as two - 7' wide sections which can be easily joined on site
• Typically supplied as a 12" thick deck with 20" high timber curbs (most capacities)
• Actual driving surface is 12'4" wide between the curbs
• Bridges comply with BC-CL625 Load Rating 64 Metric Tonnes (Highway Loads)
• Engineered stamped drawings are supplied with each bridge
• Integral lifting hooks make installation quick and easy with a HIAB or Excavator
• Some bridge models kept in stock for immediate deployment
• Customer designs and installs their own abutment system (typically cement step lock-blocks)
• Made from PEFC Certified BC Coastal second growth sustainable Hem/Fir and Douglas Fir timber

Optional Product Features:

• Sacrificial 3" Floor can be attached where wear is a concern
• A 42" handrail kit can be supplied which would mount on top of the curb. Or the curb can be removed and the handrail installed in a more conventional fashion.* For service vehicle, not rail cars
